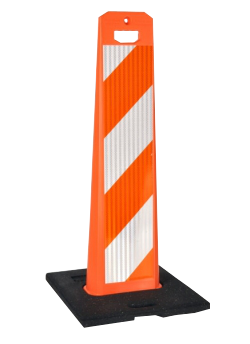

Ultra Panels
Ultra Panels Description
FEATURES:
- Large arch carry handle allows gloved workers easy, comfortable and secure grip. Molded light mount is designed for standard size light bolt and cup washers.
- Recessed reflective sheeting area, maximum width 8" x 36". Accommodates USA MUTCD minimum of 270 square inches of reflective sheeting.
- High gravity molded rubber base hugs the road and quickly assembles and disassembles even with up to a 12" wide sign attached.
- Fully stackable with or without base with the ability to nest within 3 1/2".
- Multiple 60 mph plus impacts resulted in no damage to any part of the Ultra Panel, the base or the test car.
- Stacking units stack within approximately 3 1/2" for compact shipping and handling.
- Custom printing available (Kids at Play, Slow, No Parking, Valet Parking, etc.)
- Tested and certified to meet the crashworthy requirements of NCHRP-350, also approved by the Texas D.O.T.
| SPECIFICATIONS | |
| Panel | Low density polyethylene |
| Color | Cad. orange or white |
| Panel Weight | 4 1/2 pounds |
| Panel Height | 43" |
| Vertical Panel Height | 36" |
| Vertical Panel Width | 8" |
| Base Material | Manufactured with minimum 45% recycled rubber |
| Base Size | Rectangular:
18" x 13" x 1 1/2" Rectangular: 20" x 28" x 1 3/4" Square: 20" x 20" x 1 3/4" |
| Base Weight | Rectangular:
9 pounds Rectangular: 20 pounds Square: 30 pounds |
| Panel Dimensions | 8 5/8" x 1 1/8" top tapering to 12 1/2" x 6" at bottom |
| Bottom Flange | 9 1/4" x 17" |
| Temperature Range | Freeze
stress crack (tested to) -180ºF Heat softening temp: +240ºF |
| Reflectivity | High intensity, diamond grade, engineering grade, super engineering grade, or custom printing |
| Reflective Panel Size | 8"
x 24", 8" x 34", 8" x 36", 8" x
12" x 27" (270 sq. in.) (U.D.O.T. Approved) |
| All
specifications and descriptions are subject to change without
notification. Patent No. Des. 412,131 and Des. 415,443 |
|
