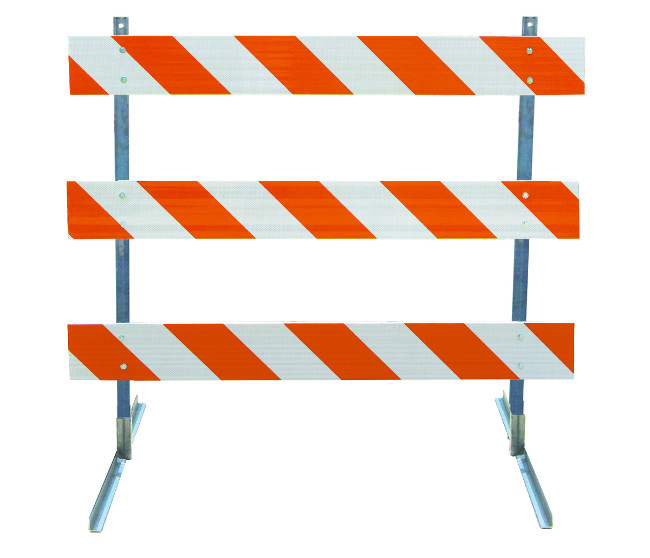

Type 3 Plastic Barricades
- The first and finest NCHRP-350 approved plastic Type III barricades (plastic boards, steel legs).
- Durable, hot rolled high carbon steel construction with universal mounting holes
- Easy to assemble, bolt together, very portable.
- Unique base design allows for short term or permanent securing.
- Weather resistant baked enamel paint.
- Accommodates reflective sheeting on both sides of panels and accepts two flashing lights.
- Multiple barricades can be joined in series.
- Excellent high wind stability.
| SPECIFICATIONS |
| Material |
Hot
rolled high carbon steel |
| Panel
Height (top) |
5' |
| Panel
Height (center) |
3'
4" |
| Panel
Height (bottom) |
2'
8" |
| Panel
Width |
8" |
| Panel
Length |
4',
5', 6', 8' |
| Panel
Thickness |
1"
|
| Reflective
Sheeting |
EG
/ SEG / HI / DG |
| Steel
Frame |
1
1/2" x 1 1/2" x 3/16" x 63" |
| Steel
Base Stand |
1
1/2" x 1 1/2" x 3/16" x 60"
with 2" x 2" x 8" square tubing receiver |
| All
specifications and descriptions are subject to change without
notification. |
Frequently Asked Questions
What are the different grades of reflectivity?
Engineer Grade is the lowest, Hi Intensity is the next one up and Diamond Grade is the most reflective. For many applications Engineer Grade will work just fine.
Do these accept barricade lights?
Yes you can mount a barricade light on each side of the barricade.
Can I choose the direction the sheeting goes in?
Yes you can please just put that in the notes of the order or tell us when you call to order.
Do you have any barricades that are over 144” wide?
We can build custom barricades, please call us for a price quote.
What kind of materials is this barricade made of?
The three beams across are made of plastic and the legs are made of steel.
Do these barricades come with legs?
Yes they have all the tools necessary to get this barricade up on its feet, complete.
Which type 3 barricades are more economical, wood or plastic?
The plastic type 3 barricades are the lightest, so you will be paying the least for shipping with those, but the wood barricades have a lower unit cost. Your best bet is to have both quoted and see which comes out cheaper overall. We would be happy to do it!
What kind of lead time should I expect with these?
The time it takes for these to ship out of the factory depends on a few factors so it is best to call and ask. Shipping time is 4-5 days if you are on the East Coast, and 1-3 days if you are on the West Coast.
|
