Lighted Runway Closure Marker [Price for 1]

Closure Marker Extra
American Louver
ARCMLIGT
Regular Price: $24,500.00
On Sale For: $23,500.00 ($23,500.00 / each)
Description

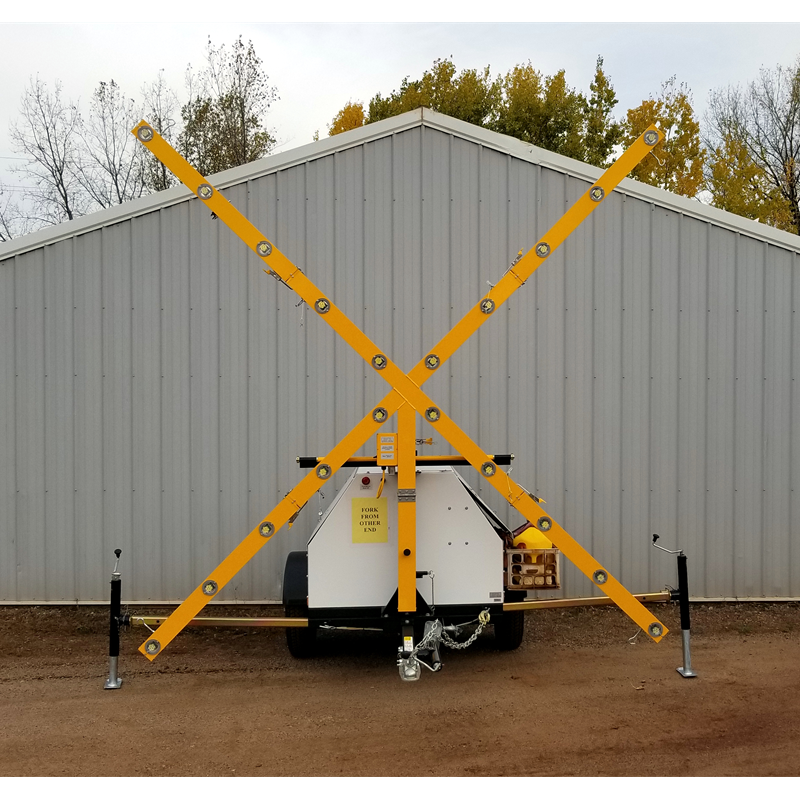

LED Runway Closure Marker Trailer X

Click Here To Download Spec Sheet

Features

  • ETL certified to FAA AC 150/5345-55, AC 150/5370-2 and NTSB Safety Recommendation A-03-05
  • 3-year, 3,000-hour engine warranty
  • Easily set up by one person in two minutes, without tools
  • Four folding arms each open to a 14-foot length
  • 20 LED Lamps deliver over 70,000 candelas at beam center
  • Visible 10-25 miles from runway under average conditions
  • Selectable brightness levels to suit environmental conditions
  • Photocell dimming for night operation
  • Four rear-mounted lamps allow visual monitoring from back side
  • Powered by a three-cylinder, liquid-cooled Mitsubishi diesel engine and Marathon brushless generator
  • Operates 140 hours between fuel fills
  • Highway tow-able, with a standard 2” hitch coupler
  • 2200-pound, DOT-compliant trailer
  • 3 swivel leveling jacks, one tongue jack
  • Adjustable light beam angle
  • Optional rear hitch, allows tandem towing of 2 units

Light Assembly

  • Arm dimensions: 14 feet diagonal, 10 feet vertical
  • Front lamps: (20) PAR38
  • Rear monitor lamps: (4) PAR38
  • Lamp intensity: 70,000 center-beam candelas
  • Lamp visibility:Exceeds FAA specification of 5 nautical miles minimum at beam center. 1.5 nautical miles minimum for +/- 15 degrees azimuth and 0-10 degrees elevation
  • Lamp life: 4200 hours
  • Flash rate: 2.5 seconds on/2.5 seconds off
  • Flasher type: Solid-state zero-crossing switch
  • Flasher bypass: Automatic upon flasher failure
  • Frame: 4 inch x 4 inch aluminum tubing
  • Paint: Yellow epoxy powder-coat
  • Photocell: Dims lamps during night operation
  • Photocell override: Yes
  • Elevation angle: Adjustable 0-10 degrees
  • Set up time: 2 minutes
  • Operable w/o generator, 120 VAC
  • Warranty

  • Engine: 2 years or 2000 hours, 3 years or 3000 hours on major components
  • Generator:1 year unlimited hours, and 2 years or 2000 hours
  • Light Assembly: 1 year mechanical parts, 2 years electrical parts, excluding lamps
  • Engine

  • Manufacturer: Mitsubishi
  • Model: L3E-W261ML
  • Speed: 1800 RPM
  • Type: Diesel, 3-cylinder, liquid-cooled
  • Horsepower: 12.7 hp at 1800 RPM
  • Fuel Consumption: 0.41 gallons per hour
  • Start/Charging: Electric starter, alternator
  • Battery: 12V
  • Low Oil Shutdown
  • High Temp Shutdown
  • Engine Hour Meter
  • Glow Plug
  • Generator

  • Manufacturer: Marathon Electric
  • Type: 4-pole, brushless
  • Model: 332CSA5214
  • Output power: 6.0 kW
  • Power Factor: 1.0
  • Frequency: 60 Hz
  • Output voltage: 120/240V, single phase
  • Voltage regulation: +/- 5%
  • Output current: 50/25A
  • Chassis

  • 2200 lb. axle
  • 2-inch ball hitch
  • Three 2000 lb. leveling jacks
  • Side jack outriggers, 11-foot-6 inch span
  • DOT-compliant marker and tail lights
  • ST175/80D13 highway-rated tires
  • Safety chains with hooks
  • All steel tubing construction
  • Powder-coated steel engine housing
  • Lockable engine cabinet doors
  • External emergency engine stop
  • Removable trailer drawbar
  • AC Power Distribution

  • Main Breaker: 30A, 2-pole
  • 120V Light Assembly Breaker: 30A, 2-pole
  • 120V Outlet Breakers: 20A (2)
  • 120V Twist-Loc: 1 receptacle
  • 120V GFI Duplex: 2 receptacles
  • Capacities

  • Fuel Tank: 57 gallons
  • Run Time: 120 hr full load, 140 hr RCM-D only
  • Coolant: 4.5 qt.
  • Engine oil: 3.5 qt.
  • Size and Weight

  • Dimensions: 114 inches (length) x 65 inches (width) x 68 inches (height)
  • Dry Weight: 1265 lbs.
  • Shipping Weight: 1450 lbs.
  • Environmental Specifications

  • Operating temperature: -40° F to 116° F
  • Operating humidity: 0 to 100%
  • Maximum Wind Load: 50 mph
  • Optional Equipment

  • 2 ½” Pintle Hitch
  • Combination 2” Ball and 2 ½” Pintle Hitch
  • Rear Ball Hitch
  • Protective Cover
  • Gel Cell Battery

Contact Us For A Full Quote Today!
