32 x 72 Hydrocade Barricade w/ Fence [Price for 5]
HYDROCADE™ WATER BARRICADE SYSTEM W/ COMPLETE FENCE SYSTEM
TL-3 Longitudinal Channelizing Device*
Features:
72”L x 32”H longitudinal channelizing device (182.9 cm L x 81.3 cm H)
• Unique stacking design allow for up to 50% more units per truckload
- 200 units per truck, 8 units per pallet
• Durable construction, impact resistant
• Flat obstruction free side, position to eliminate pedestrian trip hazard
• Conforms to any roadway design
- turns 90° and adjusts to curbs up to a 6°
incline
• Connector pins snap onto barricade center for storage and transport
- sturdy and tough pins, built with strength-enhancing channels
• Fill with 81 gallons of water for LCD deployable weight of 745 lbs.
- every unit is leak tested
• Two forklift access areas
• Stacking lugs keep stacked units from sliding
• Light shelf for standard barricade light
• Accepts optional fence panels in place of connector pins
• Areas for retroreflective striped sheeting
44” x 8” (111.8 cm x 20.3 cm) on both sides
• Standard in orange and white, custom colors available
• Crash tested for TL-3 MASH Acceptance, submitted to FHWA*
• Meets MUTCD Standards
Barrier Dimensions: 32"H x 17.5"W x 79"L (72"L Connected), 67lbs Empty, 745lbs Water Filled
Reflective Striping: Orange/White Reflective Striping optional, let us know if you want a quote. Engineer Grade (Basic) or Hi Intensity (More Reflective) Both Available.
FENCE PANEL DETAILS
Made in the USA & 100% Recyclable
Overall Height w/ Barrier 84"
Panel is 51"

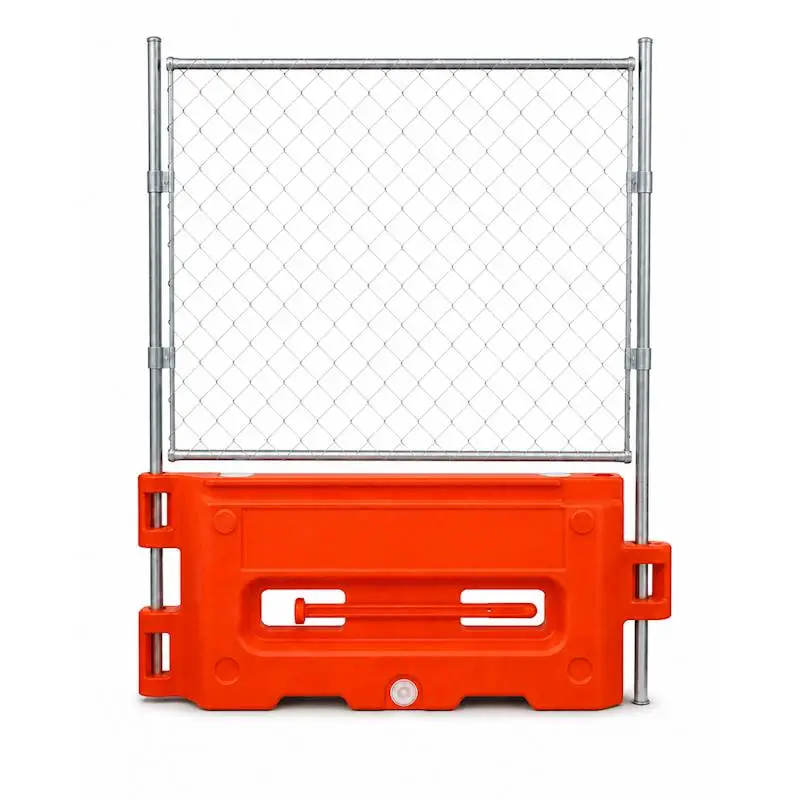

Add extra security and privacy with a steel Barricade Fence Panel, designed to integrate with this 32 x 72 Hydrocade Barricade.
The frame and posts are made with 1.66” OD galvanized pipe (16 guage) and the post support rings are made of 2.50" OD (14 guage) galvanized square tubing. Once installed, the fence panel will add an additional 52" above the 32” tall barricade creating an overall height of 7’.
FEATURES & BENEFITS
-
Adds security and privacy
-
Integrates with this Hydrocade Barricade SKU: TBAR32HYD
-
Stands 7’ from the ground when installed (overall height with barricade)
SPECIFICATIONS
-
Composition: Galvanized Steel
-
Width of panel: 69 in
-
Height of panel (not including post supports): 60 in
-
Height of post supports: 51 in
-
Height of posts: 84 in
Give us a call, email or chat to get a custom quote with the most accurate shipping. Lots of times it will be cheaper than the online calculator.
