Grade of Reflective Sheeting (Reflectivity Level)
Sheeting Configuration
Bent Manufacturing
Regular Price: $506.85
On Sale For: $476.85 ($158.95 / each)

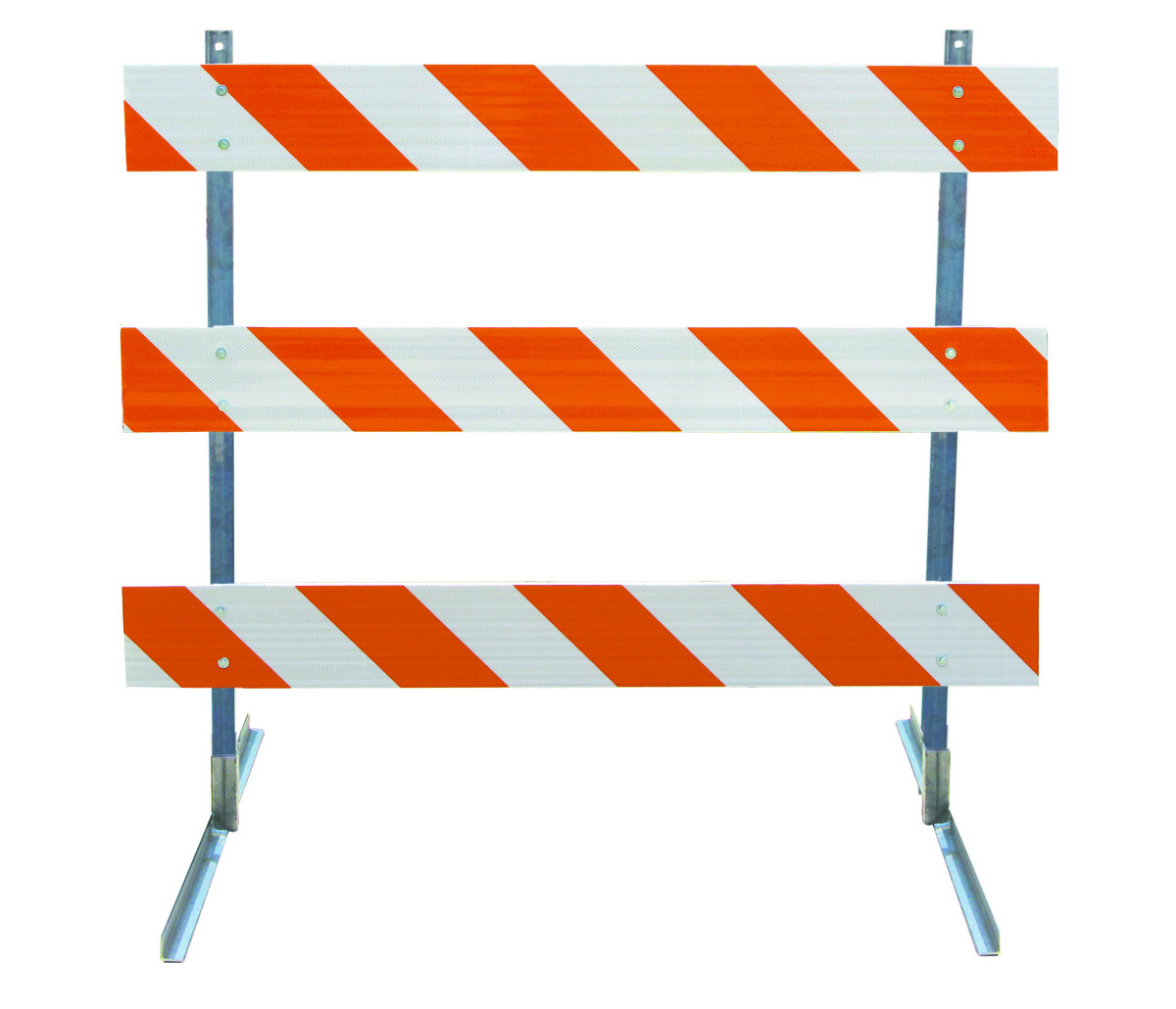

96” Wide Type 3 Barricade Features

The 96” wide Type 3 barricades are shipped with the boards, feet, and uprights separated out to help eliminate damage during transit. We also give the option to purchase legs and boards separately.

  • Parts from one of our type 3 barricades to the next can be interchanged if purchasing the same configuration.
  • The steel upright frame stands by a 2” x 2” square tube receiver, is hot rolled and composed of durable carbon.
  • Permanent or short term fastening available because of the design of the base.
  • Red/White striped sheeting is available, instead of the standard Orange/White.
  • Frame and base are painted powder-coated enamel to help protect from elements.
  • Comes with plastic boards and angle iron legs/uprights.
  • Product listed is for 1” thick boards, for 2” thick please call for pricing. End caps are provided on the beams to provide support and reduce tightening problems.

96” Wide Type 3 Barricade Specifications

Base Dimensions: 60.00" long X 1.50" (each side)
Base Material: Hot rolled high carbon steel
Base Weight: 8.5 lbs
Board Length: 8'
Board Material: UV Stabilized polymer with cold weather protection package
Board Thickness: 1.00" or 2.00"
Board Width: 8.00"
Center to Center Dimensions: 20.00" minimum
Colors: Orange/White or Red/White (special order)
Height of Sheeting Above Roadway: 60.00" minimum
Height of Top Board Above the Roadway: 60.00" minimum
Height of bottom panel / board off roadway: 12.00" minimum
Reflective Sheeting: Many options available
Upright Dimensions: 63.00"
Upright Material: Hot rolled high carbon steel

96” Wide Type 3 Barricade FAQ

What do the different options of reflective sheeting mean?

The different options represent different grades, meaning different levels of reflectivity. The most reflective is Diamond grade, the next level down is Hi-Intensity and the least reflective is Engineer grade.

Can they hold barricade lights?

Yes, each 96” wide type 3 barricade can hold two barricade lights on either end.

Can I request the sheeting to be in a certain direction?

Yes, but we would need to know at the time of the order.

I need a barricade wider than 144” do you make this?

We have contact with a few barricade manufacturers and most of them can do custom barricades, so yes.

What would you suggest; a barricade made of plastic or wood?

Pricing is going to be very similar, so that shouldn’t be a factor. We sell a lot more plastic and because of that, I would suggest the plastic material over the wood.

I want to buy these today, but when will I get them?

When it leaves the facility has a lot to do with how many barricades you are ordering, how common the options you chose are, and how many orders are in front. For a better estimate please call. As far as transit time to get from the facility to your destination, 4-5 days is common to get to the East Coast and 1-3 days is typical to get to the West Coast.
