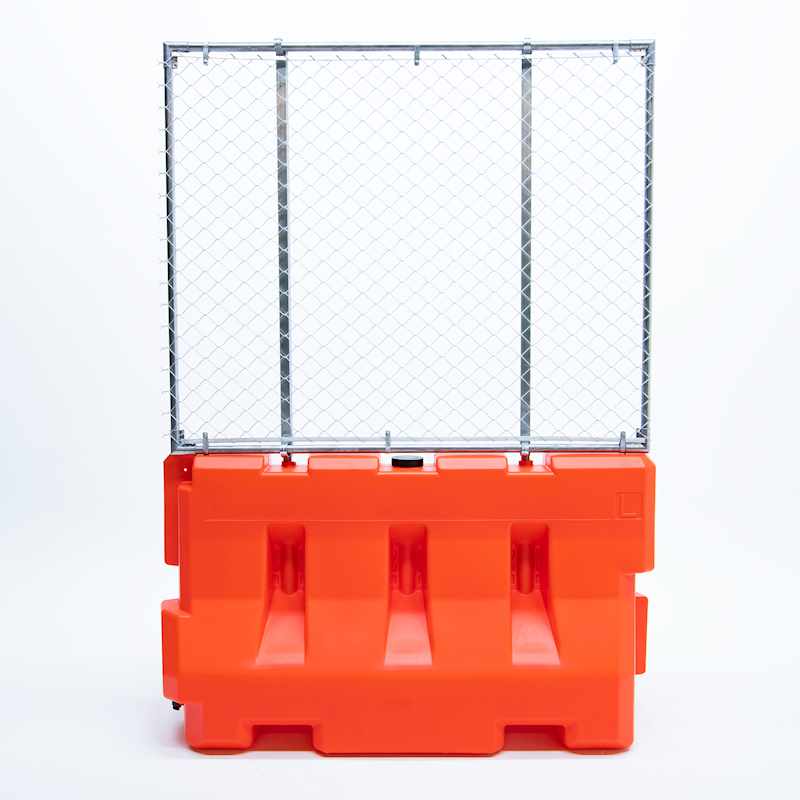

42 x 72 LCD Barrier w/ Fence

Barrier Color
Fence System
American Louver
TBARLCDFENCE
Regular Price: $456.95
On Sale For: $436.95
DESCRIPTION

Click Here To Download One Page Spec Sheet

Click Here To Download Long Spec Sheet
Click Here To Download Fence Drawing



Barrier Detail (Fence Detail Below after FAQ)


42″H x72″L x24″W / 80lbs Empty
.156″ thick high density
Polyethylene wall
Patents Pending



When being used on a federal highway, fill with 10.8 gallons of water (178 lbs). Otherwise, fill with as much as 150 gallons of water (1305 lbs).

Can you explain what an LCD is?

A Longitudinal Channelizing Barricade (LCD) is a federally-designated version of a traffic barricade. These were made to give visual guidance for pedestrians and motorists. Think of them as a supplement to traffic drums when delineation is required. Keep in mind these units do not give positive protection. An LCD is a great way to fill the middle ground in safety between the danger that concrete barrier posses to vehicles versus the gaps in lines of traffic drums that can allow vehicles and pedestrians into the work zone.

For an LCD barrier to be certified for job site use, the unit must pass NCHRP-350 requirements on the crash test and the supplier will then be issued a Federal Acceptance Letter. Part of the requirement is that the manufacturer who holds the acceptance letter can show the letter right on request.

No need for concrete barriers!

Not all construction zones have to have concrete jersey barriers. Concrete barriers need to be used only under two circumstances (per the Roadside Design Guide): When the hazard behind the barrier would cause more damage than the impact of the concrete barrier, or to stop a stray vehicle from crashing into a zone where workers would potentially be at risk. Using concrete barrier systems as a delineation device is considered poor practice and unnecessarily dangerous.

Benefits & Safety

  • A lot easier to set up than a concrete barrier
  • Comes will all necessary hardware and in any configuration it can form an interlocking wall
  • These units have enough of a presence that drivers respect them.
  • Other traffic safety products like drums and cones can be widely spaced causing them to be confusing. LCD’s give great positive visual delineation because they form a wall.
  • This wall is a way to stop a car or person from wandering into a construction area.
  • The other delineation devices can also easily be tipped over by nature (weather conditions) or traffic – these water-filled barricades are a lot more stable
  • During the night and in bad weather, they delineate work area positively



Learn about shopping for the lowest shipping rate



Frequently Asked Questions


Can you mount barricade lights to these?
You would have to mount it directly to the fence. May require some zip ties or L brackets.

Can you give me shipping specifications?
See past shipping quotes on LCD barriers here
Yes, shipping is not cheap with these, but we help offset these costs by providing some of the lowest unit prices in the industry. If you are near Clearfield, Utah (84016) shipping will not be too high. Also, please note that we have other Jersey Style barricades that ship from Indiana, and some that ship from Pennsylvania, give us a call to find the barrier that is closest to you.

I would like to get my own shipping quote, what are the shipping dimensions?
No problem. These are shipping class 250, and they ship with 5 units on each pallet. A pallet weighs 40lbs itself and each unit is 80lbs.

I need the most economical 42 x 72 Jersey Barrier, what do you suggest?
In most cases this will be the most economical unit because it is 20lbs lighter than our ‘regular’ Jersey barrier (that ship from Indiana) and is $20 less per unit (not counting fences). However, if you are on the East Coast our 'GUARDSAFE' unit may be better because of shipping costs (ships from PA). This Guardian Barrier is in California for the same price, so this could be a better deal if you are in that area. Request a quote on all barriers if you want and see which comes out as the lowest overall price!

Do you offer used units with discounted prices?
We do have used units sometimes, and will pass on a great discount for you. Call to see if we have any in stock!



Fence Details - Prefabricated Fence Panel

Made in the USA & 100% Recyclable

Add extra security and privacy with a steel Barricade Fence Panel, designed to integrate with this LCD Barrier.
The frame and posts are made with 1 3/8” galvanized pipe and the post supports are made of robust 1 1/2” galvanized square tubing. Routing clamps at the base of the panel secure to the post supports and allow the posts to adjust horizontally, making installation easy. Once installed, the fence panel will add an additional five feet above the 42” tall barricade creating an overall height of 8’ 6”.
Fence panels are typically used when a construction site borders traffic or pedestrian causeways. If debris or privacy are concerns, mesh fabric can be added to create a more pleasing appearance. Because the fence panel integrates with our standard construction barricades and TL-3 rated traffic barricades, they are useful in many applications. We can help you decide which combination of products is right for your situation.
FEATURES & BENEFITS
  • Adds security and privacy
  • Integrates with this LCD Barrier and SKU:TBAR32CH
  • Stands 8’ 6” from the ground when installed
SPECIFICATIONS
  • Composition: Galvanized Steel
  • Width of panel: 70.75 in
  • Height of panel (not including post supports): 60 in
  • Height of post supports: 61 in
  • Height of posts: 50 in
