Type III Wood Barricades 72" Wide

Grade of Reflective Sheeting (Reflectivity Level)
Sheeting Configuration
Traffix Devices
TBARIIIW6
Regular Price: $139.50
On Sale For: $129.50
DESCRIPTION

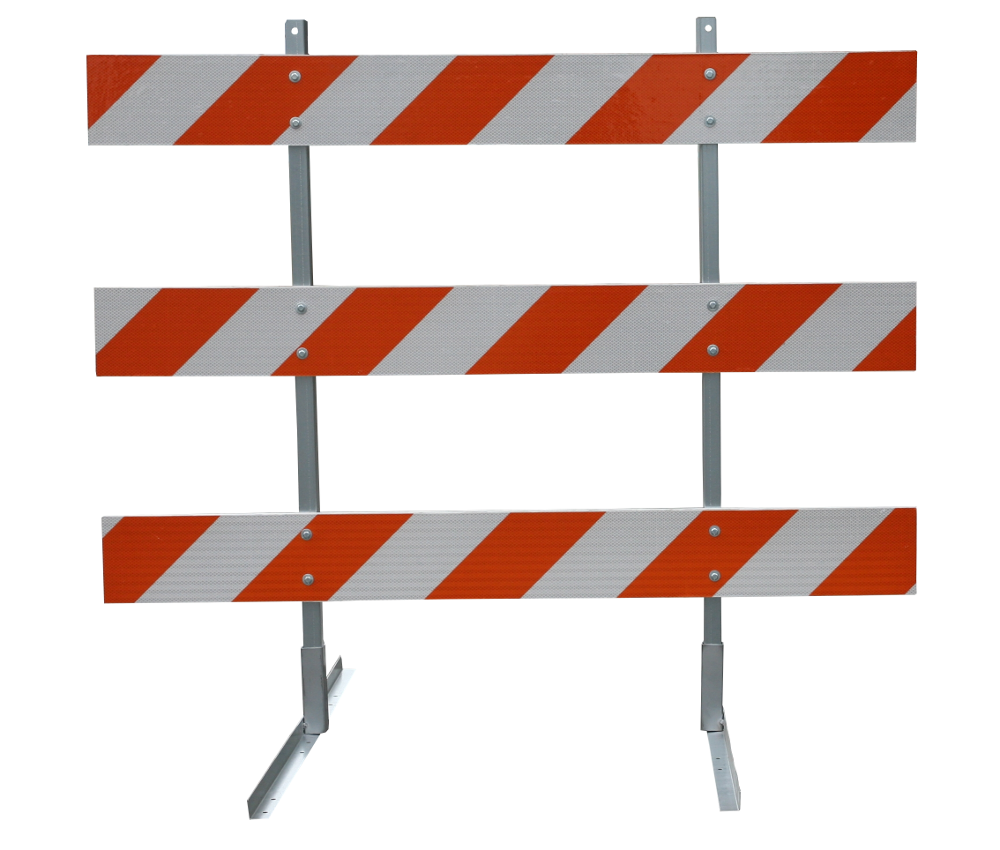

Type III Wood & Steel Barricade 72" Wide

Click Here To Download Spec Sheet

  • Get this 72” barricade in parts or a completely assembled unit. If you need legs or boards, they can be bought as separate parts. The components across these type 3 barricades are interchangeable.
  • A 2” x 2” square tubing receiver stand up a heavy duty carbon steel upright frame and base.
  • Accepts two barricade lights. We carry both solar and battery barricade lights if you are needing those as well.
  • Permanent or short term fastening allowed because of the design of the base.
  • To protect the frame and base from the elements, they are powder coated with enamel paint.
  • Reflective sheeting can be applied to one or two sides of these plywood boards.

Specifications

Base Color: White powder coated enamel paint
Base Dimensions: 60.00" long X 1.50" (each side)
Base Material: Hot rolled high carbon steel
Base Weight: 8.5 lbs
Board Length: 6'
Board Material: Plywood
Board Thickness: 3/4"
Board Width: 8.00"
Center to Center Dimensions: 20.00" minimum
Height of Sheeting Above Roadway: 60.00" minimum
Height of Top Board Above the Roadway: 60.00" minimum
Height of bottom panel / board off roadway: 12.00" minimum
Overall Height: 60.00" minimum
Reflective Sheeting: Many options available
Type III: YES
Upright Dimensions: 63.00"
Upright Material: Hot rolled high carbon steel

FAQ’s

What reflective sheeting options do I have?
The reflective sheeting options you have are Diamond Grade (most reflective), Hi Intensity (middle of the road) and Engineer Grade (least reflective).

Can these barricades accept warning lights?
Each barricade can accept two barricade lights.

Can I choose the direction of the sheeting?
Yes, we just need to be made aware of your preferred direction when you order.

Can you make a barricade wider than 144”?
We can make barricades wider than 12’, give us a call and we will quote you.

What is this barricade made of?
The legs are made of steel while the beams are made of plywood.

Do legs come with this unit?
Yes you are buying a complete unit.

What material is better for barricades, wood or plastic?
We recommend plastic because it is more popular, easier to handle and the same price as wood (and generally the same weight).

When will my order leave your warehouse?
There are a bunch of factors that influence lead time so it’s best to call and ask. Shipping (transit) time is 1-3 days if you are on the West Coast, and 4-5 days on the East Coast.
