Solar Arrowboard Trailer M90 [Price for 1]

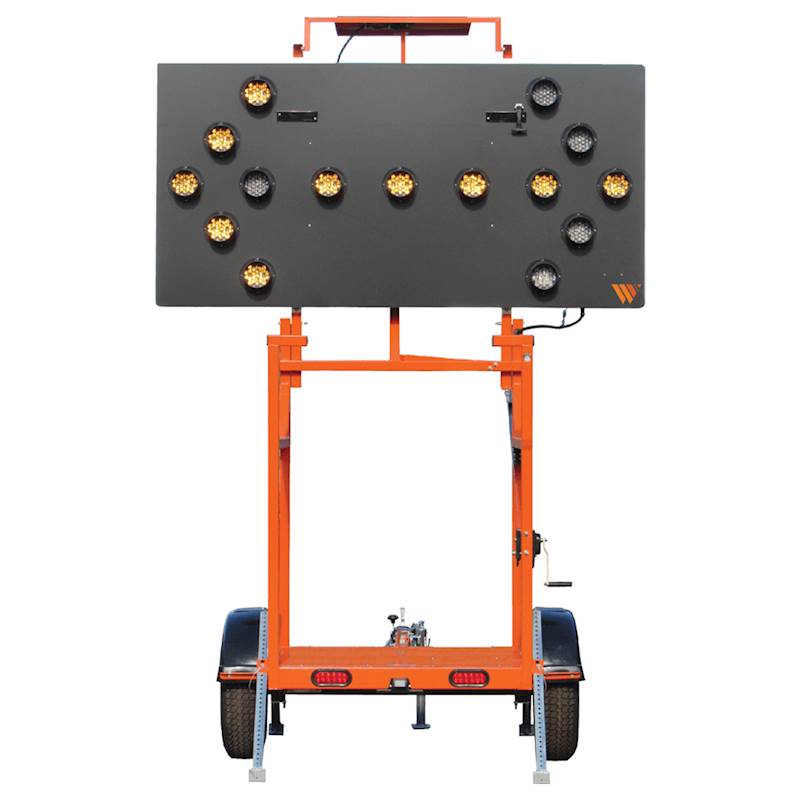

Arrowmaster Solar Assist Arrow Board Trailer 15 & 25 Light Models (Model M90)
Bulk Orders: 10 Units (Full Truck) Qualifies for Significant Savings on Shipping
Click Here To Download Spec Sheet
Solar panel is positioned for maximum charging capabilities in both the operating and travel modes.
Available with 15 or 25 lights in both the standard and wide-angle models (only standard angle listed)
Important: Batteries are hidden and maintenance free. Normally, you would need to check the batteries for power monthly. Also - because the batteries are hidden, no need to worry about theft. The batteries are often stolen and sold for cash. With these units they won't be able find them.
Warranty: This arrow board DOES have a warranty, however the specifics of the warranty change often, please contact us for the full warranty information on this model.
Security: The control box is lockable, and the battery box is made of steel. No need to worry about someone changing the settings who shouldn't be, or stealing batteries.
The Arrowmaster M90 Solar-Assisted Advance Warner is a sophisticated, low operating cost arrow board. The revolutionary low power draw controller and LED lamps provide maximum visibility at all times while directing traffic through construction zones. This system is powered by a battery bank of sealed cutting edge, maintenance-free batteries that are hidden inside the trailer deck, charged by a top mounted, shadow free solar panel. The Arrowmaster conforms to, and in most cases, exceeds all federal and state MUTCD specifications.
Understanding How Solar Assist/Solar Powered Works:
The LED lamp panels are powered by a bank of batteries in order to convey bright, distinctive messages to the traveling public. The batteries are in turn recharged automatically by a group of solar panels located at the highest point on the unit. The Solar Arrowboard is designed with sufficient energy backup (batteries) to operate for a period of 30 days without any sun. The solar panel shall recharge the battery bank at a rate of 2.5 hours sun to one 24 hour period of usage. There is also a charger on each message board for charging boards overnight if needed.
Features
Solar Panel: Single, top-mounted unit that is constantly in horizontal positioning
Battery: Four 12 Volt 18AH sealed maintenance-free batteries hidden inside the trailer deck
Lamp: Fully sealed, 5” PAR 46 LED with high-impact plastic hoods
Sign Panel: Full-sized 48” x 96” all-aluminum construction, sealed against the elements
Controller: On-Board self-contained controller with 7 modes of operation
Main Frame: 2” x 3” x .120” high-grade steel
Axle: 2,000-lb. axle, 1,4000lb. leaf springs, roller bearings and hubs
Tire Size: 205/75D14
Removable Tongue: Designed not only for security but safety as well
Hitch: 2" ball standard size. Optional pintle ring available
Battery Charger: This is an option on each unit (with/without) but we only list it here with the charger, as that’s the common choice.
Note: Frequently using an AC charger will increase life of the battery
Finish: Powder coat paint, durable
Mast: 3" x 3" x 3/16" steel tube assembly
Specifications
Shipping Weight: 15 Light is 940lbs & 25-Light Model is 1000lbs
Tongue Weight (Panel Down): 75 lbs
Tongue Weight (Panel Up): 135 lbs
Length with Tongue: 110"
Width: 96"
Traveling Height: 88"
Operation Height: 142”
Sign Panel Size: 48" H x 96" W
Number of Batteries: 4
Battery Type: 12V 18AH wired in parallel
